VME-9150
デジタルI/O / VMEbus
・Extensive host software support package ・Local I/O exercising support ・Single point fault detection and isolation ・Minimizes host overhead ・High-speed host interface using RM or Ethernet ・Single host communications link controls multiple RM Intelligent I/O Controllers (IIOCs) ・Slave chassis power down support
ICS-8500
その他 / PMC/XMC
・FPDP II 400 MBytes/second interface ・PCI 2.2 64-bit, 66 MHz PCI interface ・8 MBytes Buffer Memory ・FPDP I/O via PMC P4 Connector ・Rugged FPDP / FPDP II Receiver/Transmitter PMC ・Software-controlled channel selection and 'corner turning' capabilities ・Windows, Linux and VxWorks device drivers ・Sensor Processing Resource Center ・Ruggedization Levels
ICS-8553
その他 / PMC/XMC
・4 Transformer-coupled analog inputs ・FS < 1.5 GHz 4-channel, or 3 GHz 2-channel (software selectable), 8-bit ・Xilinx Virtex-4 User Programmable FPGA FX60 ・TCXO @ 10 MHz ・8 individual MMCX Coaxial Connectors ・PCI 2.2 64-bit, 66 MHz Master/Target Burst Mode DMA capable ・VITA 42 (XMC) high-speed serial interface (single connector, 8-lanes) ・Pn4 LVDS …
MB1-5576
通信I/O / その他の規格
・Error detection ・Data transferred at 6.2 Mbyte/s without redundant transfer ・Any node on the network can generate an interrupt in any other node with a single command ・Data transferred at 3.2 Mbyte/s with redundant transfer ・Data written to memory in one node is also written to memory in all nodes on the network ・High-speed, easy-to-use fiber-opti…
PMCCG1
グラフィック / PMC/XMC
・S3 2300E GPU ・256 Mbytes DDR2 ・64-bit memory bus ・PCI-X interface ・32/64-bit 33/66/100/133 MHz PCI bus ・Dual channel output ・2x analog VESA outputs ・Up to UXGA (1600 x 1200) @ 60 Hz ・2x digital DVI outputs ・Up to WUXGA (1920 x 1200) @ 60 Hz ・Build option for LVDS output ・Video input ・RS-170, NTSC, PAL ・CVBS or S-video ・Fast pow…

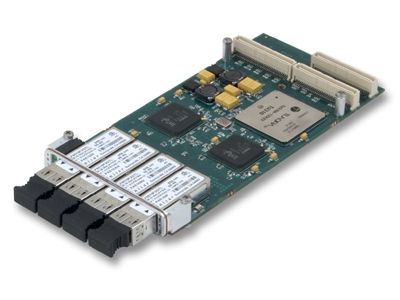

PMC677
通信I/O / PMC/XMC
・Options: 1000BaseLX, acrylic or polyurethane conformal coating ・RoHS compliant versions available ・IBM 21P100 PCI bridge ・3.3V signaling ・DMA engine ・Interchangeable, pluggable transceivers ・LC connector ・Quad 1000BaseSX fiber Gigabit Ethernet ・Jumbo Frames capable ・Full 1000Mbit point to point performance ・PCI-X, PCI 64-bit/66MHz
NETernity™ RM931
スイッチ/ルーター /
・VLAN support 802.1Q-ID tagging ・Multicast and broadcasting ・802.1w Rapid Spanning Tree algorithm ・802.1d Spanning Tree algorithm ・Full wire speed on all ports ・RS232 serial port ・MDIX for cross and non-cross cabling detection ・Two 1000BaseSX fiber uplinks ・Optional port routing to the front panel (dual slot) ・12 or 24 port 10/100BaseTX, rear I/O ・…
NETernity™ CP3-GESW12M3
スイッチ/ルーター /
・Management interface is through serial RS-232 interface or in-band Ethernet (CLI, Telnet, HTTP,SNMP) ・Complete Layer-2 & Layer-3 (routing) management ・10-port Gigabit Ethernet line speed switching ・Extensive built-in testing (BIT) ・Fully managed solution ・Not recommended for new designs
NEXUS Quattro
CPUボード / VMEbus
・OS support: VxWorks and Linux (additional O/S support available) ・Temperature: 0 to +55C commcercial or -40 to +70C ・Ruggedization: air cooled, rugged, commercial (benign), conduction cooled rugged, extended temperature ・Watchdog Timers: 4 x 32-bit ・FSB: 133 MHz ・L2: 1 MB (7448) ・VITA 31.1 support ・Gigabit Ethernet ・Dual PCI-X PMC sites ・VME320 (2…
PowerXpress PPC8A
CPUボード / VMEbus
・For Ruggedization Levels, please see the configuration guide under the downloads tab ・6U VME SBC ・2x PMC slots ・Up to 1 GB SDRAM with ECC ・Freescale Power Architecture 7447 @ 1.2 GHz ・1 Gigabit Ethernet and 2x 10/100 Mb/s
