VPX6-684 Ethernet Switch/Router
スイッチ/ルーター / OpenVPX
・Fully managed, intelligent multi-layer (layer2/3) gigabit Ethernet switch in a 6U VPX form factor ・Complies to OpenVPX switch profile: SLT6-SWH-4F24T ・Complete range of convection and conduction cooled formats (IEEE 1101.1 and IEEE 1102.1) with shock and vibration support ・Up to 24 x 1GbE (10/100/1000 Mbps) auto-negotiating copper interfaces (4 of…

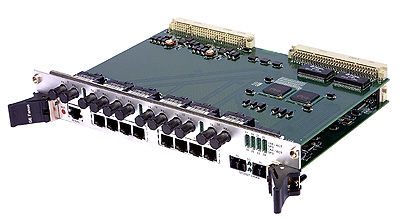

RM937
スイッチ/ルーター /
・Link aggregation to all ports in groups up to 8 for 10/100 Mb/s and 2 for Gigabit ports ・MDIX feature to allow detection of cross and non-cross cables ・Runs Linux Operating System ・RS232 serial port ・Six 10/100BaseFX Ethernet ports (ST or SC connectors) ・Sixteen 100BaseTX Ethernet ports, 8 front (RJ45 connectors), 8 rear ・Two 1000BaseSX or LX Giga…
NETernity™ RM943/.10
スイッチ/ルーター /
・802.1Q VLAN ・802.1p QoS ・Auto address aging ・Auto address learning ・4K MAC address table ・Full wire speed Layer 2 switching on all ports ・Option for four of these ports to be 1000BaseSX ・Eight 10/100/1000BaseTX auto-negotiating, supports full or half duplex ・Broadcom BCM5388 switch fabric ・Option: 6 ports 10/100/1000BaseT + 2 port 1000BaseSX ・Not …
NETernity™ RM921N
スイッチ/ルーター / VMEbus
・Front I/O ・6U VME form factor ・Available in 12-port single slot or 24-port dual slot and multiple copper/fiber combinations ・OpenWare™ switch management firmware ・Advanced QoS and IP Functionality ・Hardware enabled IPv6 and IPv4 support ・Fully managed Layer 2/3+ switching ・L-2 and L-3 switching at wire speed ・L-3 protocol support including OSPF, R…
VPX3-685 Secure Ethernet Router
スイッチ/ルーター / OpenVPX
・3U VPX form factor, complies with OpenVPX™/VITA 65 standards ・Fully Managed Secure Network Router ・Flexible port configurations to rear VPX connectors ・12x 10/100/1000Base-T, plus either: ・2x 10GbE ports ・1x 10GbE ports + 4x GbE SerDes ・0x 10GbE ports + 8x GbE SerDes ・High-performance Layer 2/3+ features ・Wire-speed non-blocking IPv4/…
NETernity™ PMC941FX
スイッチ/ルーター / PMC/XMC
・Up to 8 port-based VLANs ・Provides both Full/Half duplex ports ・Flow Control capabilities including back pressure for half-duplex and 802.3x flow control for full-duplex ・Enables mixed voice-data networks ・Provides port-based prioritization of packets on 4 ports ・Auto address learning ・Auto address aging leading edge QoS capabilities, based on 802…
NETernity™ CP3-GESW12M3N
スイッチ/ルーター /
・Conduction cooling and extended operating temperature range ・Extensive built-in testing (BIT) ・Management interface is through serial RS-232 interface or in-band Ethernet (CLI, Telnet, HTTP,SNMP) ・Complete Layer-2 & Layer-3 (routing) management ・10-port Gigabit Ethernet line speed switching ・Conformal coated ・Fully managed solution ・Not recommende…
ATCA-F140 – 40G ATCA Switch Blade
スイッチ/ルーター / AdvancedTCA
・PICMG® 3.0 compliant base interface switch ・PICMG 3.1, Option 1, 9 fabric interface switch (1G/10G) ・PICMG 3.1 R2 for 40G fabric support ・Single AMC site ・Optional SATA HDD ・Optional Telecom clocking support ・Integrated software package ・Designed for NEBS/ETSI compliance
VPX6-6802 Ethernet/InfiniBand Switch
スイッチ/ルーター / OpenVPX
・6U OpenVPX™ Fabric40™ Centralized Switch for Data Plane and Control Plane Connectivity ・Supports 16U20F and 20U19F OpenVPX profiles ・Enables easy implementation of scalable high-performance centralized DSP clusters for small, medium and large systems ・Supports dual independent Data Plane and Control Plane fabrics conforming to virtually all popu…
NETernity™ CP920-12/M-CC
スイッチ/ルーター /
・PICMG 2.16 (Ethernet on the backplane) ・PICMG 2.1 (Hot swappable) ・Fully managed Layer 2/3+ switching ・12 10/100/1000BaseT ports ・Full wire-speed operation ・Conduction cooled ・PICMG 2.19 (IPMI compliance)
